Compact and versatile

Exceptional - in every respect

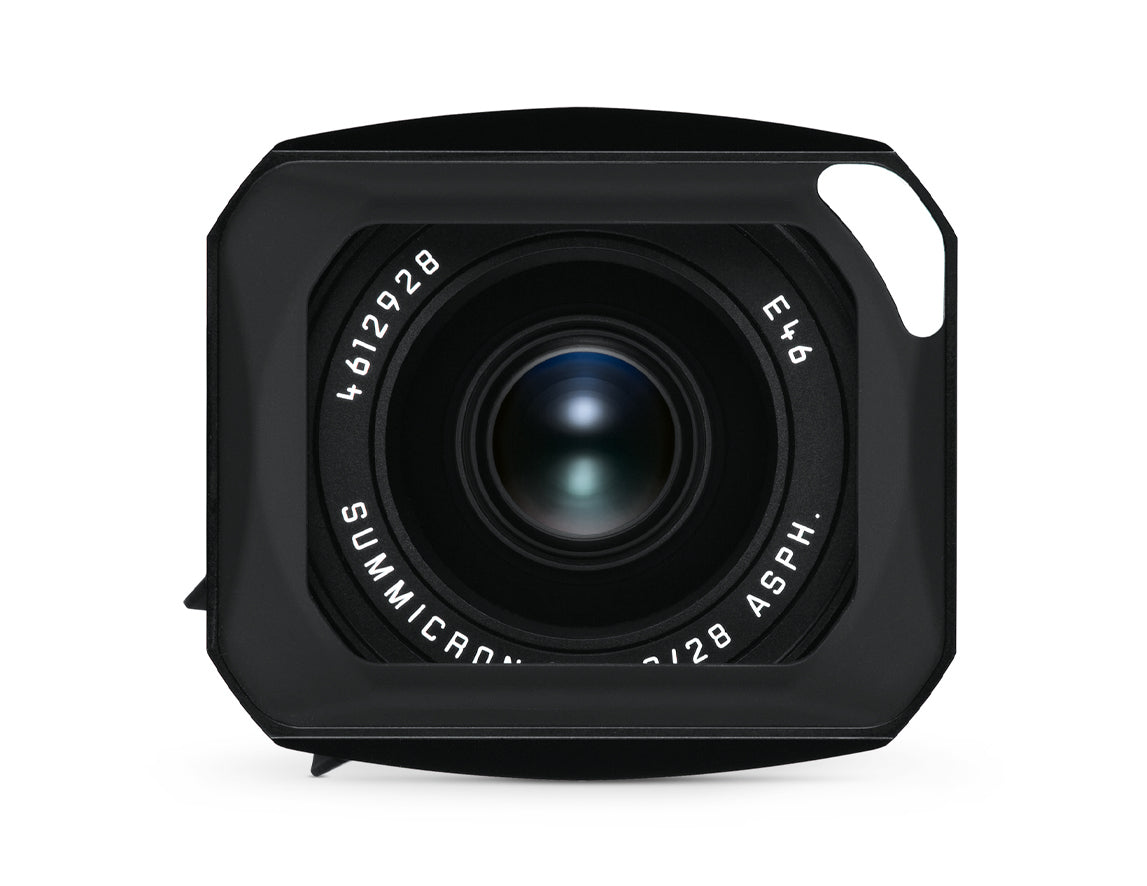

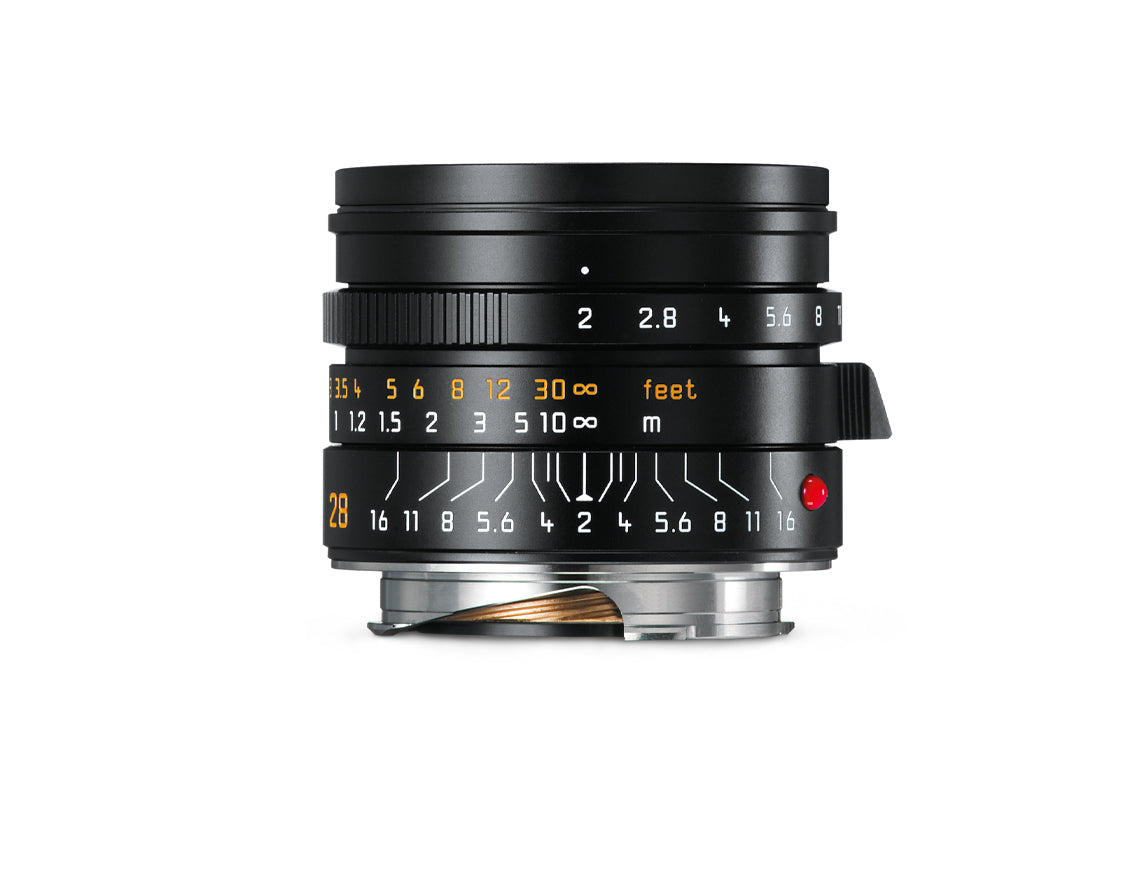

This new wide-angle lens is fast, compact and delivers exceptional performance. Its outstanding speed makes it particularly versatile and delivers brilliant imaging results even in difficult lighting conditions. Its full-metal lens hood with a screw mount protects the optical system against undesirable stray light and flare. A screw-in protector ring is provided with the lens to protect the filter thread of the lens when the hood is not in use.

Technical details

At its maximum aperture, the Summicron-M 28 mm f/2 ASPH. already delivers impressively rich contrast, differentiated reproduction of even the finest structures, a soft and smooth bokeh and extremely high resolution. This is due to its recalculated optical design, which almost completely eliminates the astigmatic differences in the image field caused by the cover glass of the sensor to ensure excellent image quality from corner to corner in every picture.

AT A GLANCE

• Perfect Balance of Size, Weight, and Incredible Performance
• New Screw-On All-Metal Lens Hood Compared to Previous Version

IN THE BOX

• 28mm Summicron-M f/2 ASPH Lens
• E46 Lens Cap
• Rear Lens Cap M
• Lens Hood & Cap
• Thread Protection Ring (When Hood Not in Use)
• Lens Pouch

• Angle of view (diagonal, horizontal, vertical):74°, 65°, 46°
• Optical design
• Number of lenses/groups:9 / 6
• Focal length:28 mm
• Position of entrance pupil:23.3 mm
• Focusing range:0.7 m to infinity
• Distance setting
• Scales:Combined meter/feet graduation
• Smallest object field:528 x 789 mm
• Largest reproduction ratio:1:21
• Aperture
• Setting/Function:With click-stops, half values available, manual diaphragm
• Lowest value:16
• Bayonet:Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models
• Filter mount:Internal thread for screw-on filters size E46
• Lens hood:Available, screwable (supplied)
• Dimension and weight
• Length:41.4
• Largest diameter:Approx. 53 mm
• Weight:Approx. 257 g
