Creating proximity

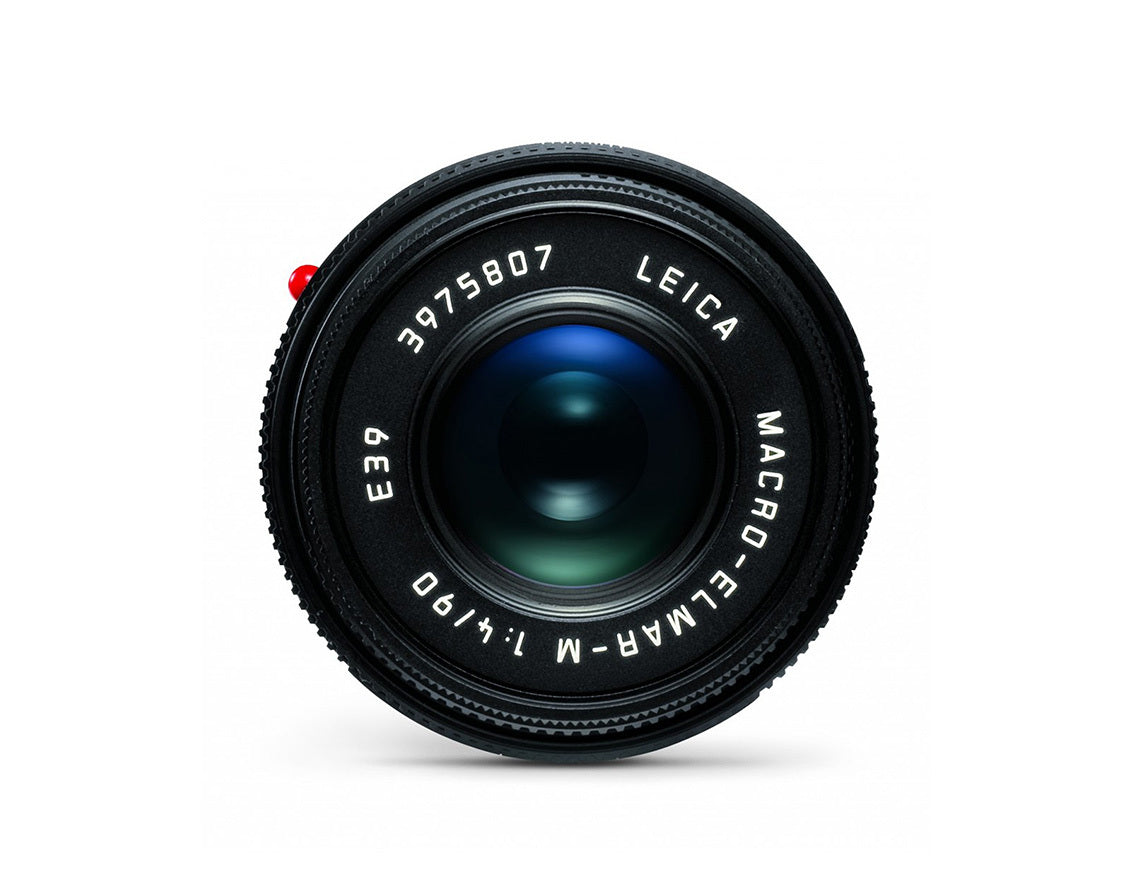

The Macro-Elmar-M 90 mm f/4 can be used as a compact 90 mm telephoto lens or, in combination with the Leica Macro-Adapter-M, for macro shots up to a magnification of 1:2. Either way, the lens provides an incredibly high imaging performance.Without the adapter, the Leica Macro-Elmar-M 90 mm f/4 is an extremely versatile telephoto lens – for example, for portraits with shallow depth of field and in travel photography for capturing details in landscapes. For reportage photography, the Leica Macro-Elmar-M 90 mm f/4 allows photographers to capture discreet shots at a greater distance from the subjects. The Leica Macro-Elmar-M 90 mm f/4 is a compact and lightweight alternative to existing Leica M-Lenses of this focal length. When not in use, the lens can be collapsed to save valuable space in the camera bag.

The new macro solution for the Leica M (Typ 240):

The Leica Macro-Elmar-M 90 mm f/4 and the Macro-Adapter-M form together a convenient solution for close distance photography using the live view function of the Leica M (Typ 240).The adapter is designed to be mounted between the camera and the Leica Macro-Elmar-M 90 mm f/4. Its integrated helical screw system allows a variable extension of the lens of between 18 and 30 mm and thus enables the variation of the reproduction ratio. When mounted on the adapter, the Leica Macro-Elmar-M 90 mm f/4 can also be used in its collapsed position for exposures up to infinity. Thanks to a new locking function, this allows photographers to set any distance from 41 cm (reproduction ratio 1:2) to infinity without having to dismount the adapter.

The new macro-adapter-M

As the Macro-Adapter-M is also compatible with other M lenses, it offers Leica M photographers an even wider range of opportunities for creative composition and additional variety in reportage portfolios. With Leica lenses from 50mm and longer, it enables macro photography up to a reproduction ratio of 1:2 and, with wide-angle lenses, even larger ratios.

AT A GLANCE

Ultra Compact Collapsible Design

Reproduction Ratio Up to 1:2 When Used with Macro-Adapter M

IN THE BOX

90mm Macro-Elmar-M f/4 Lens

E39 Lens Cap

Rear Lens Cap M

Lens Hood

Lens Pouch

NOT INCLUDED

Macro-Adapter M

Angle of view (diagonal, horizontal, vertical):
27° / 23° / 15° (M8: 20° / 17° /11°)

Optical design

Number of lenses/groups:
4 / 4

Focal length:
90.0 mm

Position of entrance pupil (from bayonet flange):
22 mm

Focusing range:
0,8 m to infinity

Distance setting

Scales:
Combined meter/feet graduation

Smallest object field:
169 x 244 mm (Adapter 72 x 108 mm) M8:122 x 183 mm (Adapter: 36 x 54 mm)

Largest reproduction ratio:
Approx. 1:6,7

Aperture

Setting/Function:
Prefix with click-stops, half steps, click-stop

Lowest value:
22

Bayonet:
Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models

Filter mount:
Internal thread for screw-in type filters E39, non-rotating lens mount

Lens hood:
Separate metal lens hood, can be attached in reverse for storage

Dimension and weight

Length:

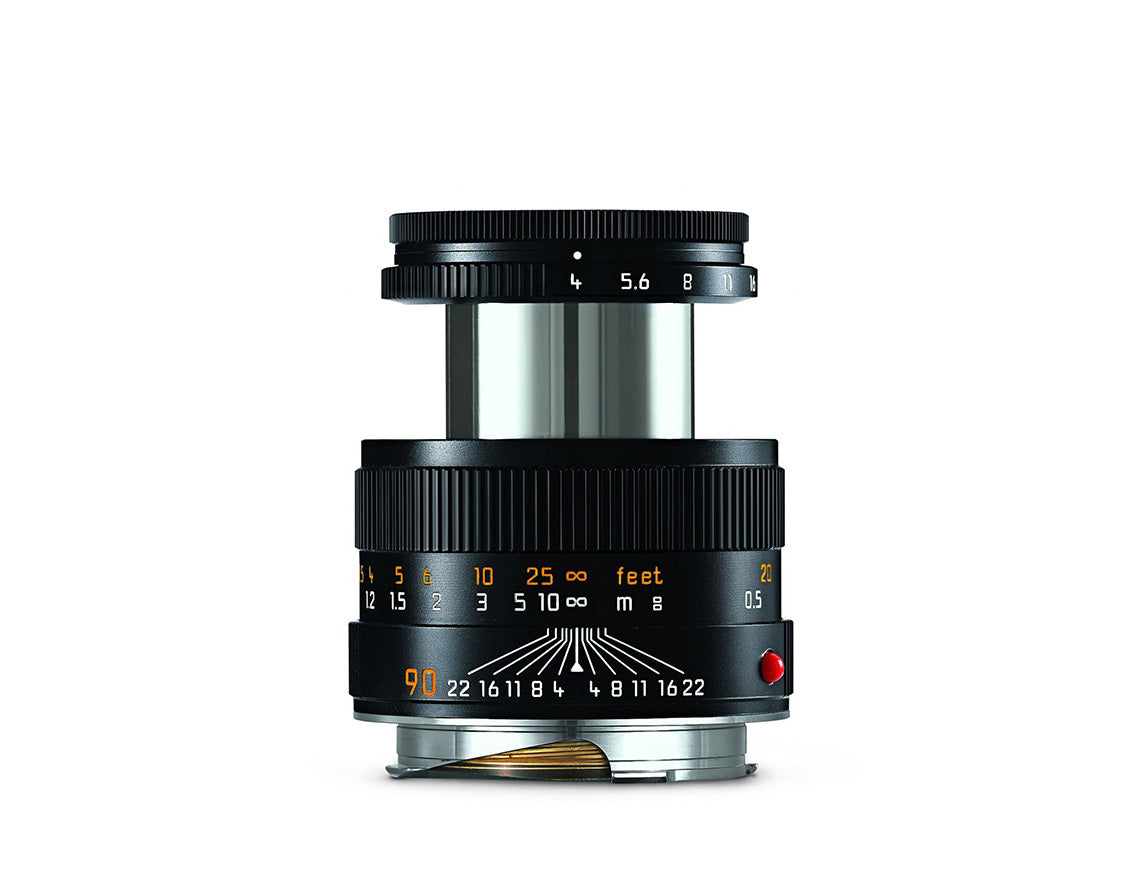

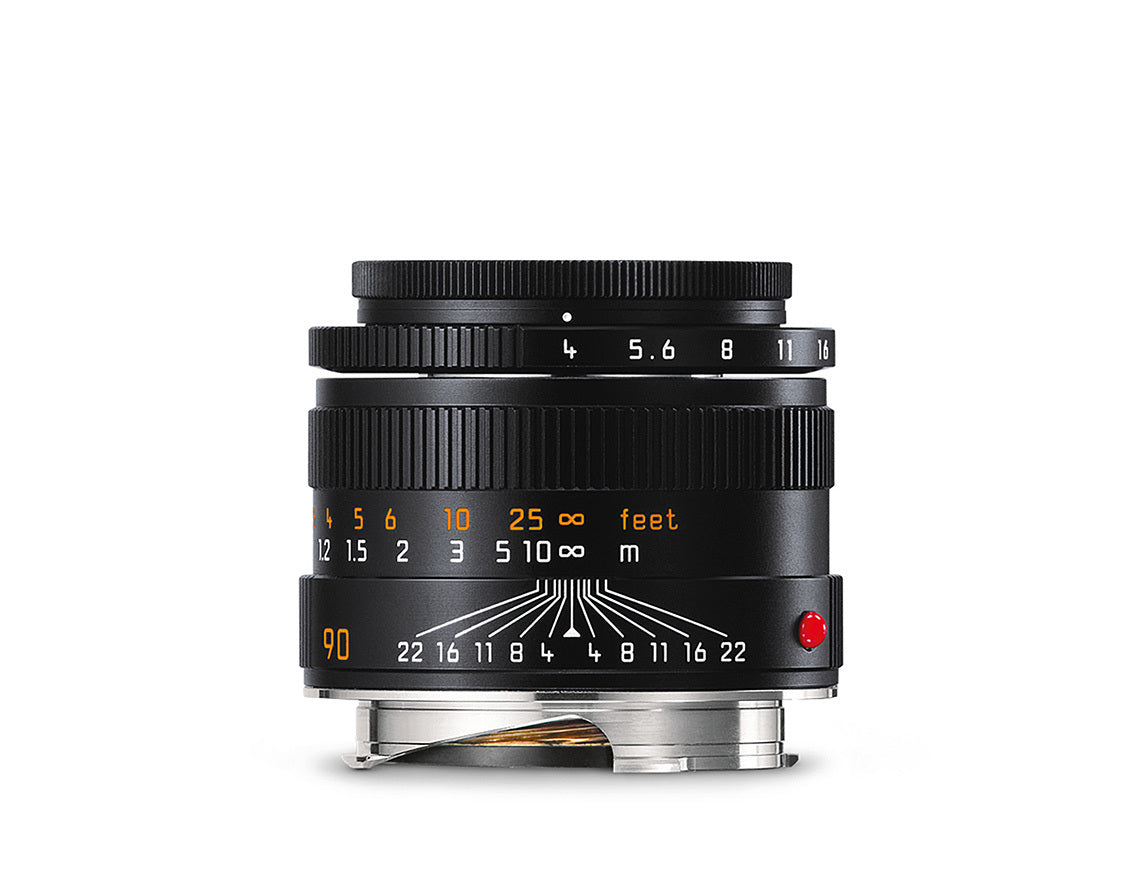

59 mm (lens extended, in working position), 41 mm (lens collapsed, in storage position)

Largest diameter:
52 mm

Weight:
Approx. 230 g
